Requirement

You would like to configure the browser extension at a central location for all users, including server mode, database profiles and a few other settings.

Prerequisites

Password Secure Server & Browser extension min. version 9.1

Extension IDs - You will need the ID of the extension in all configurations. When the extension is installed via the stores (Chrome Web Store, Edge/Add-ons, Firefox Add-ons), you can find the ID in the following table. If it was installed in any other way, the ID may differ - in this case, you can find it on your browsers' add-on management page (e.g. chrome://extensions).



  Browser Extension ID
1 Google Chrome
bpjfchmapbmjeklgmlkabfepflgfckip
2 Microsoft Edge
ahdfobpkkckhdhbmnpjehdkepaddfhek

3 Mozilla Firefox
{3bdedc7b-4521-44e0-bffe-519f60814d95}



Required properties for profiles - The following list contains all profile properties that can be deployed automatically.



  Value name Mandatory? Value data
1 ID Yes
Unique(!) ID of the profile. Use a GUID (generate with for example guidgenerator.com).
When using the same GUID for multiple profiles, the last one will overwrite all previous!
2 database Yes
Name of the database the connection should be established for.
3 color No
Color of the profile in Hex format (e.g. #0068da). Used in the list of passwords, see the screenshot below.
4 name Yes

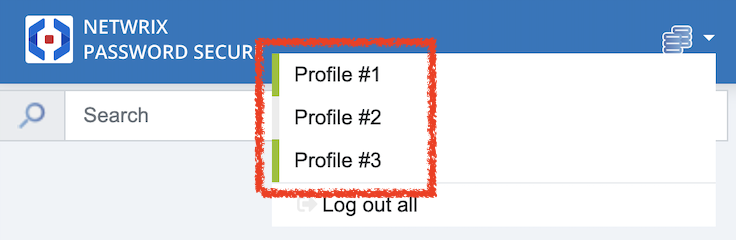

Name of the profile that is displayed at the databases' menu when multiple profiles are existing. If only one profile exists, the name is not displayed.
5 webAppAddress Yes
Address of your web app. Will be used when opening a password via the browser extension.
Example: https://example.com/
6 endpoint Yes
Endpoint for the whole communication with the server.
Example: https://example.com/api



Procedure



Google Chrome

Windows

  1. Open the registry and go to the key HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\<extension-id>\policy - if this path is not existing, create it
    1. Replace <extension-id> with the ID of your extension
  2. Create a key called managedSettings, containing a key profiles
  3. Inside this created key, you have to create sub-keys (counting upwards - first profile is key "1", second profile is key "2", and so on …).
  4. Define each property from the properties table above as REG_SZ and configure the correct value

For example, you can use the following .reg file to create two example profiles. Just save it to your computer and double-click it. Don't forget to change the extension ID if yours is something different.

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip\policy]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip\policy\managedSettings]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip\policy\managedSettings\profiles]

; From here, profiles are starting
[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip\policy\managedSettings\profiles\1]
"id"="c62d0f1b-85e1-4661-b2f2-cdf84de471ca"
"color"="#ff85ff"
"name"="Profile #1"
"webAppAddress"="https://example1.com/"
"endpoint"="https://example1.com/api"
"database"="Profile1_DbName"

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip\policy\managedSettings\profiles\2]
"id"="6e68336a-ea85-4a86-8a84-346e84e0bc1a"
"color"="#1b549b"
"name"="Profile #2"
"webAppAddress"="https://example2.com/"
"endpoint"="https://example2.com/api"
"database"="Profile2_DbName"

; Define other settings
[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Google\Chrome\3rdparty\extensions\bpjfchmapbmjeklgmlkabfepflgfckip\policy\managedSettings\options]
"allowCrossClientAuth"=dword:00000001



Microsoft Edge

Windows

  1. Open the registry and go to the key HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\<extension-id>\policy - if this path is not existing, create it
    1. Replace <extension-id> with the ID of your extension
  2. Create a key called managedSettings, containing a key profiles
  3. Inside this created key, you have to create sub-keys (counting upwards - first profile is key "1", second profile is key "2", and so on …).
  4. Define each property from the properties table above as REG_SZ and configure the correct value


For example, you can use the following .reg file to create two example profiles. Just save it to your computer and double-click it.
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek\policy]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek\policy\managedSettings]

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek\policy\managedSettings\profiles]

; From here, profiles are starting
[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek\policy\managedSettings\profiles\1]
"id"="c62d0f1b-85e1-4661-b2f2-cdf84de471ca"
"color"="#ff85ff"
"name"="Profile #1"
"webAppAddress"="https://example1.com/"
"endpoint"="https://example1.com/api"
"database"="Profile1_DbName"

[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek\policy\managedSettings\profiles\2]
"id"="6e68336a-ea85-4a86-8a84-346e84e0bc1a"
"color"="#1b549b"
"name"="Profile #2"
"webAppAddress"="https://example2.com/"
"endpoint"="https://example2.com/api"
"database"="Profile2_DbName"

; Define other settings
[HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Edge\3rdparty\extensions\ahdfobpkkckhdhbmnpjehdkepaddfhek\policy\managedSettings\options]
"allowCrossClientAuth"=dword:00000001



Mozilla Firefox

Windows

  1. Create a file passwordsecure.json at an accessible location (e.g. at C:\BrowserExtensionConfig\)
  2. Put the following content to the created file (don't forget to exchange the extension ID if yours is something different)
  3. {
        "name": "{3bdedc7b-4521-44e0-bffe-519f60814d95}",
        "description": "Configuration file for the Netwrix Password Secure Firefox browser extension",
        "type": "storage",
        "data": {
            "managedSettings": {
                "profiles": [
                    {
                        "id": "c62d0f1b-85e1-4661-b2f2-cdf84de471ca",
                        "color": "#ff85ff",
                        "name": "Profile #1",
                        "webAppAddress": "https://example1.com/",
                        "endpoint": "https://example1.com/api",
                        "database": "Profile1_DbName"
                    },
                    {
                        "id": "6e68336a-ea85-4a86-8a84-346e84e0bc1a",
                        "color": "#1b549b",
                        "name": "Profile #2",
                        "webAppAddress": "https://example2.com/",
                        "endpoint": "https://example2.com/api",
                        "database": "Profile2_DbName"
                    }
                ],
                "options": {
                    "allowCrossClientAuth": true
                }
            }
        }
    }

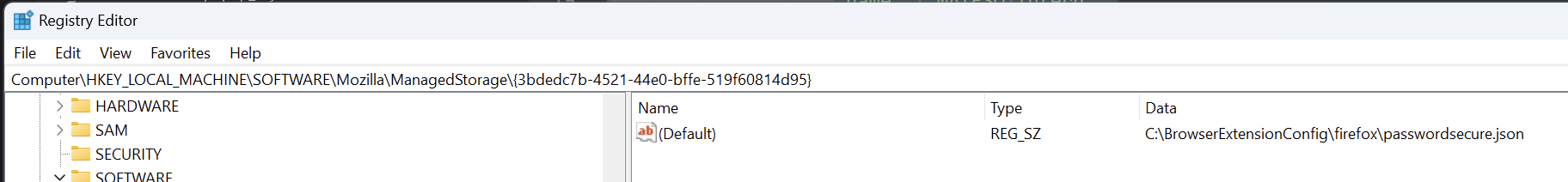

  4. Open the registry at HKEY_LOCAL_MACHINE\SOFTWARE\Mozilla\ManagedStorage\<extension-id> - if the path is not existing, create it
    1. Replace <extension-id> with the ID of your extension
  5. Give the keys (Default) property the path to the created file as value
